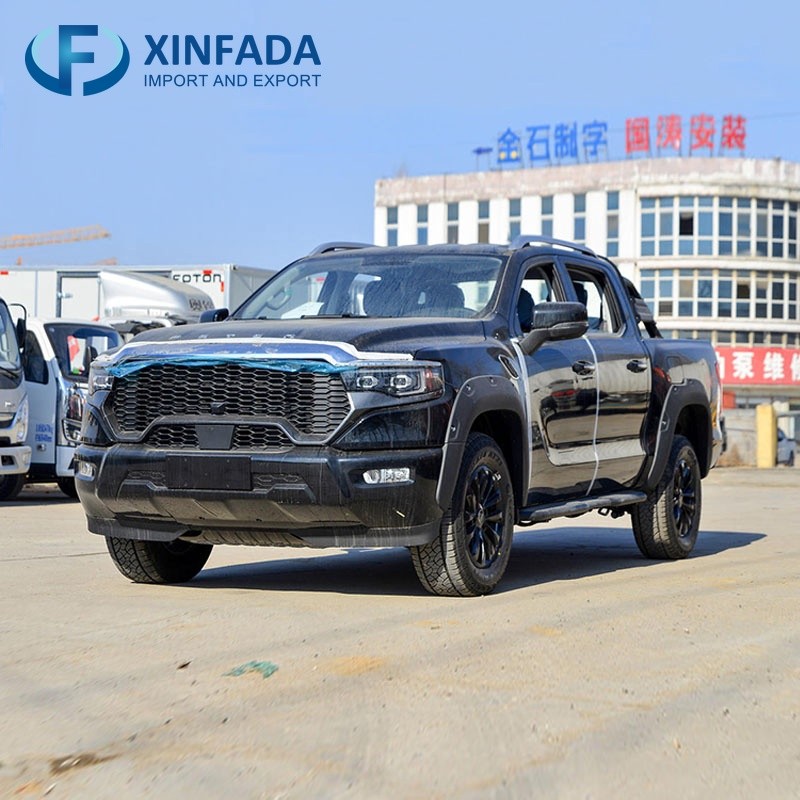

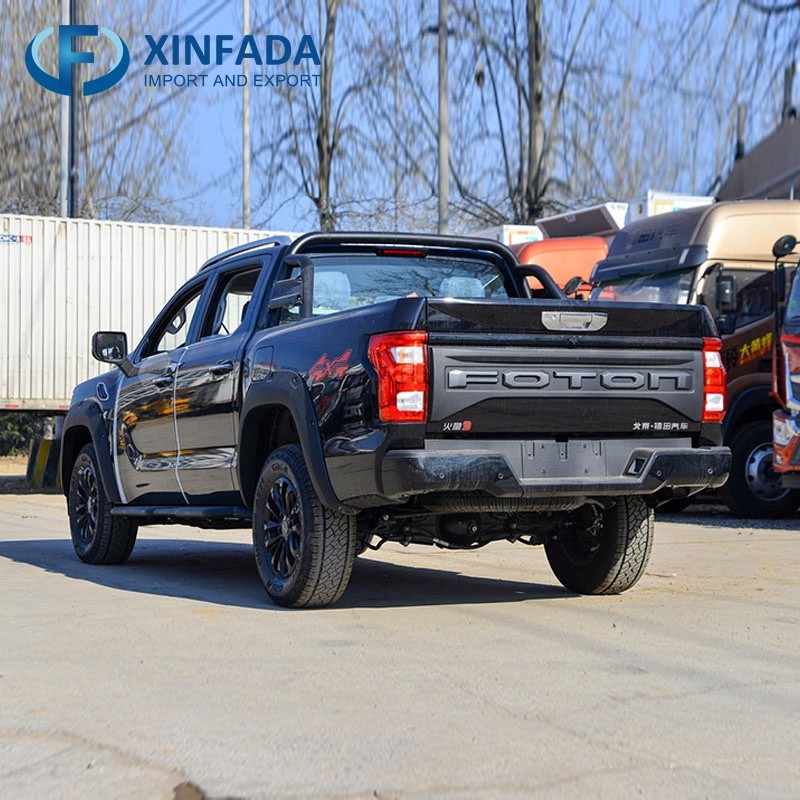

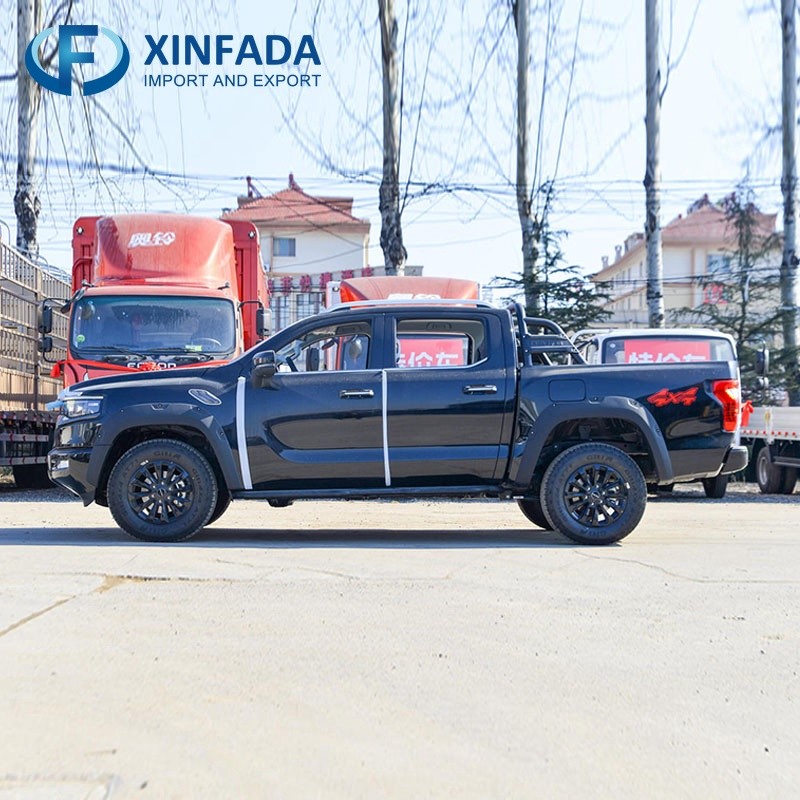

Foton Tunland V9 Mars V9 Automatic 4 Wheel Drive 2.0T Diesel 163HP Standard Wheelbase Double Cab Pickup Truck
Pickup Truck
Diesel
Engine
Beiqi Foton 4F20TC17
Max Torque
450N·m
Drive Type
4WD / AWD
Top Speed
160km/h
Seats
5
Basic Information
| Level | Pickup Truck |
| Energy Type | Diesel |
| Body Structure | 5-Seat · 4WD |
| Maximum Torque | 450N·m |
| Engine | Beiqi Foton 4F20TC17 |
| Top Speed | 160km/h |
| Seats | 5 |
Drive Form：Four-wheel driveShifting Mode：AT AutomaticMaximum Horsepower：163Displacement：2LFuel Types：Diesel fuel
Basic Information
| Announcement Model | BJ1037V2MAV-8G | Drive form | Four-wheel drive |
| Wheelbase | 3355mm | Front track/rear track | 1700/1700mm |
| Vehicle length | 5.617m | Vehicle width | 2.09m |
| Vehicle height | 1.955m | Front/Rear Suspension | 1/1.262m |
| Total vehicle weight | 2.335 tons | Total mass | 3.055 tons |
| Rated load | 0.395 tons | Approach angle/Departure angle | 28/26 degrees (°) |
| Top speed | 160km/h | Energy type | Diesel fuel |
Engine parameters
| Engine Model | Beiqi Foton 4F20TC17 | Maximum horsepower | 163 horsepower |
| Maximum output power | 120kW | Number of cylinders | 4-cylinder |
| Fuel types | Diesel fuel | Cylinder arrangement | L-shaped |
| Displacement | 2L | Maximum torque | 450N·m |
| Maximum torque speed | 1500-2400rpm |
Transmission parameters
| Gearbox model | 8-speed automatic | Number of gears | 8 gears |
| Shifting mode | AT Automatic |
Cargo box parameters
| Cargo box form | Parapet | Cargo box length | 1.577m |
| Cargo box width | 1.65m | Cargo box height | 0.53m |
Cab parameters
| Number of rows of seats | Double row |
Chassis parameters
| Chassis structure | Non-load-bearing | Assistance Form | Electric Assist |
| Front axle suspension | Double wishbone independent suspension | Rear axle suspension | Multi-link non-independent suspension |
Wheel Braking
| Front brake type | Disc | Rear brake type | Disc |
| Front wheel specifications | 265/70R18 | Rear wheel specifications | 265/70R18 |
| Wheelbase | 3355mm |
